Pièces de machines de Guangzhou Menzeh Cie., Ltd.
| Lieu d'origine: | GUANGZHOU CHINE |
| Nom de marque: | MENZEH GEARS |
| Certification: | CE |
| Numéro de modèle: | CAT315 E318 |
| Quantité de commande min: | PCs 1 |
|---|---|
| Prix: | Negociated |
| Détails d'emballage: | Cas en bois, 85*90*85 |
| Délai de livraison: | 1-3 jours ouvrables |
| Conditions de paiement: | Western Union, T/T, L/C |
| Capacité d'approvisionnement: | 500 PCs par jour |

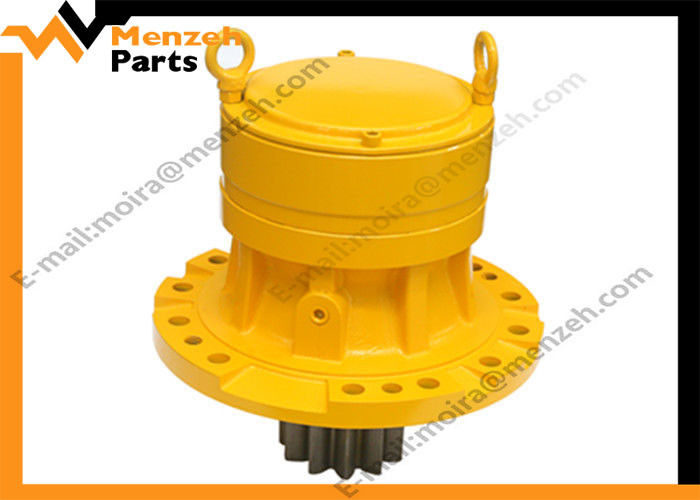

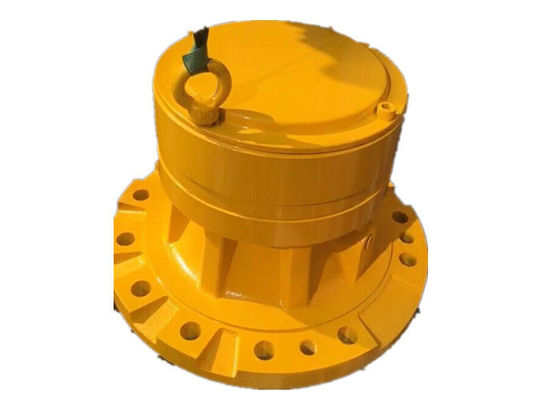

| Nom de partie: | Boîte de vitesse d'oscillation | Numéro de la pièce: | 333-3015 369-9604 199-4602 |
|---|---|---|---|
| Utilisé pour: | E318DL E315DL E318D2 L E315C | Condiction: | Tout le nouveau |
| Garantie: | 6 mois | Expédition: | Expédition d'AIR MARIN d'UPS de DHL TNT/ |
| Port: | Huangpu, Guangzhou | ||
| Surligner: | 333-3015 Excavator Swing Gearbox,369-9604 Excavator Swing Gearbox,E318DL 199-4602 |
||

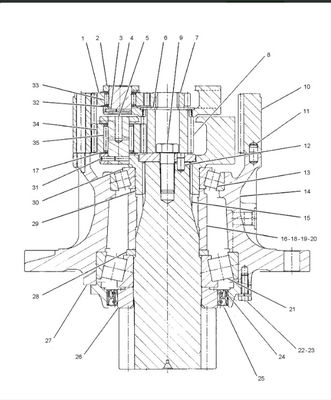

| Position. | Numéro de la pièce | Quantité | Nom de pièces |
| 1 | 191-2600 | [3] | GEAR-PLANETARY |
| 2 | 191-2599 | [1] | CARRIER-PLANETARY |
| 3 | 191-2604 | [3] | PIN-SPRING |
| 4 | 191-2603 | [3] | SHAFT-PLANETARY |
| 5 | 199-4628 | [3] | SHAFT-PLANETARY |
| 6 | 191-2605 | [1] | JOINT (30X75X3-MILLIMÈTRE THK) |
| 7 | 199-4629 | [1] | GEAR-SUN |
| 8 | 199-4630 | [1] | GEAR-SUN |
| 9 | 114-8224 M | [1] | BOULON (M20X1.5-THD) |
| 10 | 199-4631 | [1] | GEAR-RING |
| 11 | 093-6089 | [2] | DOIGT |
| 12 | 095-0893 | [1] | PIN-SPRING |
| 13 | 7I-7625 | [1] | RAPPORT D'AS-ROLLER |
| 14 | 199-4638 | [1] | LOGEMENT |
| 15 | 199-4632 | [1] | SHAFT-PINION |
| 16 | 199-4636 | [1] | ENTRETOISE |
| 17 | 199-4627 | [6] | JOINT |
| 18 | 199-4634 | [1] | ENTRETOISE |
| 19 | 199-4635 | [1] | ENTRETOISE |
| 20 | 199-4637 | [1] | ENTRETOISE |
| 21 | 148-4744 | [1] | RAPPORT DE L'AS |
| 22 | 8T-4195 M | [9] | BOULON (M10X1.5X30-MM) |
| 23 | 8T-4121 | [9] | WASHER-HARD (11X21X2.5-MILLIMÈTRE THK) |
| 24 | 102-6495 | [1] | JOINT |
| 25 | 148-4748 | [1] | CAGE |
| 26 | 148-4747 | [1] | ENTRETOISE (29,5-MILLIMÈTRE THK) |
| 27 | 1U-8846 B | [1] | SEALANT-GASKET |
| 28 | 148-4751 | [1] | ENTRETOISE (8,3-MILLIMÈTRE THK) |
| 148-4752 B | [1] | ENTRETOISE (8,275-MILLIMÈTRE THK) |
![]()
![]()
![]()
![]()
Personne à contacter: Miss. Moira
Téléphone: 86-15811713569
